Control your music system with

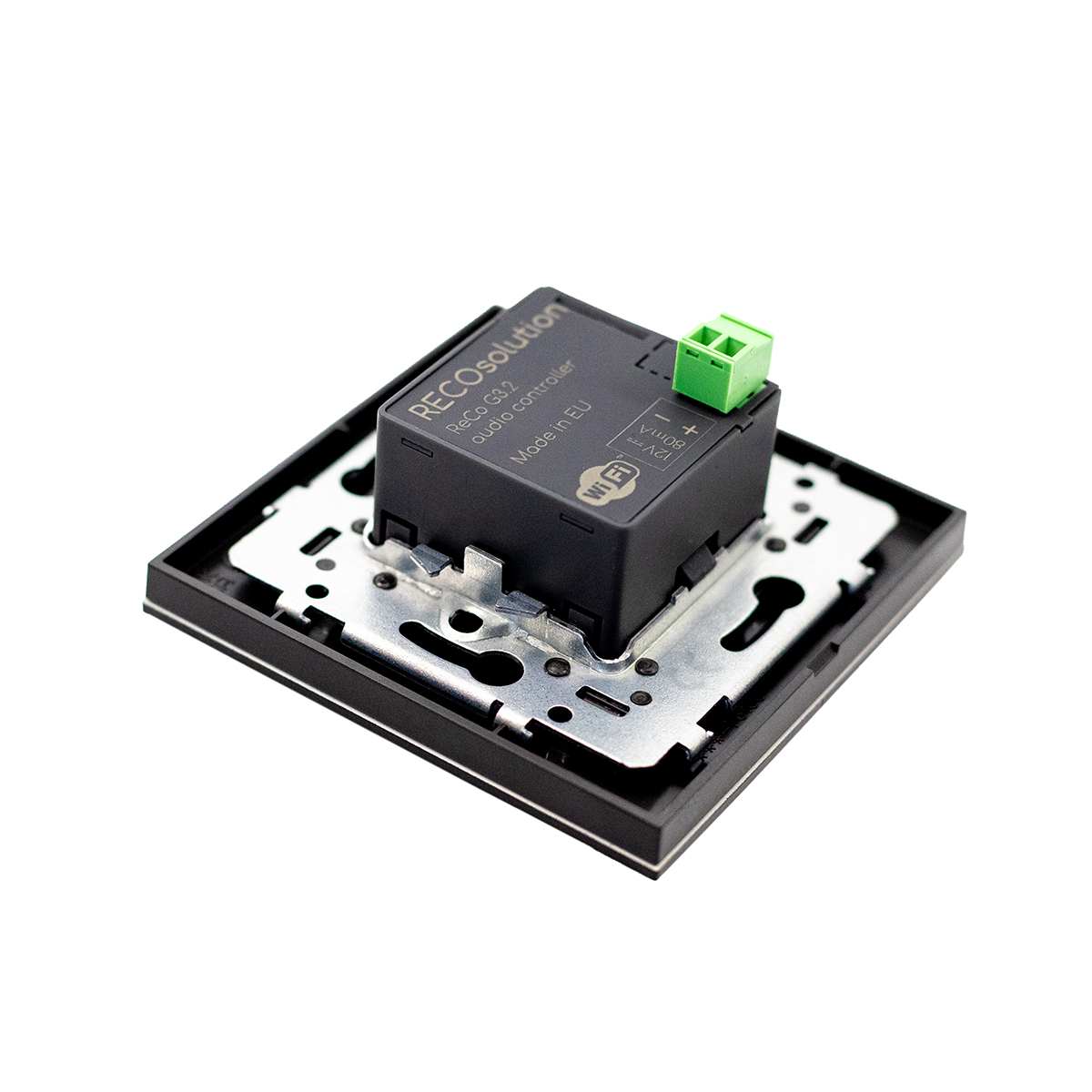

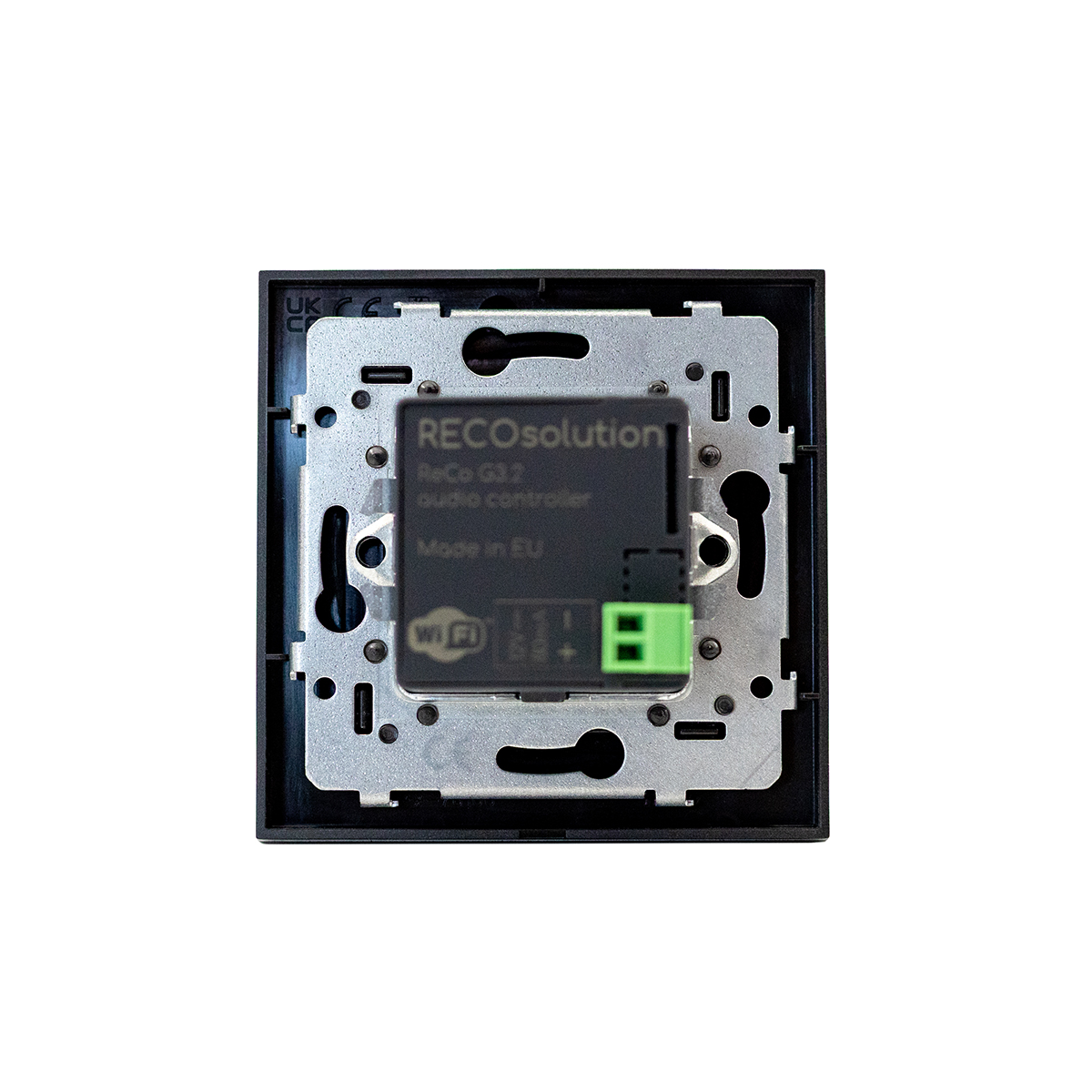

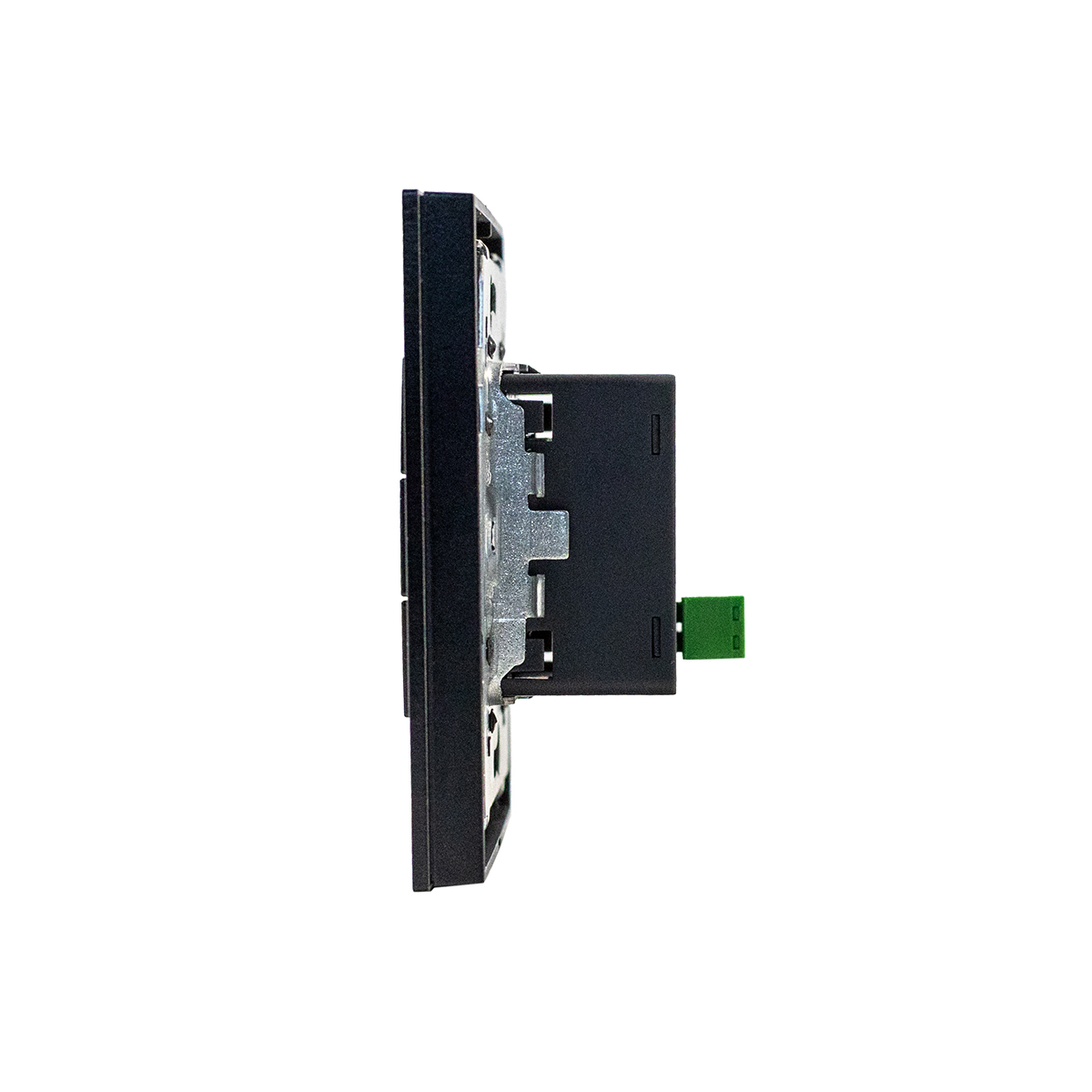

RECO BEO wall Controller
The wall controller is used for quick and comfortable control of the Bang&Olufsen multiroom systems based on the Mozart platform without the need to use a mobile application.
MAIN Features
- single zone wall controller for Beolink multiroom system
- switch zone on or off (starts last played music with PLAY button)
- volume control up and down including mute sound in zone
- direct call player presets
- JOIN function for simple connect to other Beolink players
- adjustable volume steps, 3 option (configurable via web interface)
- WIFI connection 2.4GHz
- LED feedback - PLAY, STOP, MUTE
- trigger input for function calling (play, preset)
- simple web interface for setup controller
The basic functions:
Switch music on or off in the zone; when you press the PLAY button shortly on the remote controller, the last played music starts, including online services such as Tidal or Spotify Connect, or directly calls the 4 presets saved under the controlled player with dedicated buttons. The JOIN function is activated by holding down the PLAY button (2 seconds). The volume control is a matter of course, which can be also adjusted in several steps. The controller configuration allows you to increase or decrease the volume in steps 1 (2), 1 (3), or 2 (4), with the value in parentheses being held down while holding down the volume button. Press and hold the STOP button to mute the zone, then the LEDs on both volume buttons will light up. Press the VOL + or VOL- buttons to unmute the zone.
In this way, you can very easily turn on the music in the zone with a „one click“ without having to use a mobile phone. Ideal for areas such as bathrooms, toilets, kitchens, terraces or any space where you use the Bang&Olufsen multiroom system. No unlocking your phone,
searching for a control app, selecting the right zone and choosing music … just press one button and the music in the zone will start playing. Simple and comfortable.

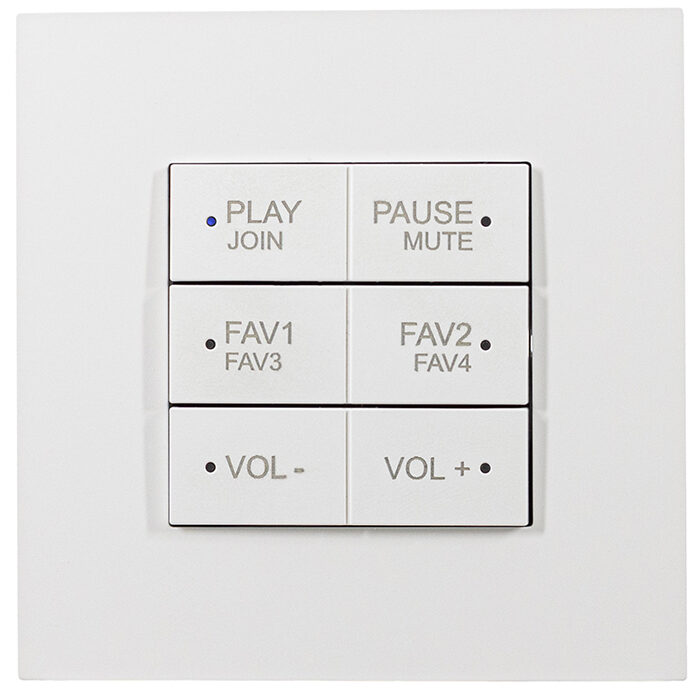

The controller is made in the NIKO design in Pure white color, any design from the NIKO color range can be prepared on request.
All controller parameters such as pair with available Beolink players on networks, control zone identification, volume steps or LED brightness are done via a simple WEB interface of the controller.
Technical parameters:
– 12VDC power supply
– network connection: WIFI (2.4GHz)
– recommended cable CAT5E or JYSTY2x2x0.8 for power supply
